SIDESTREAM FILTERS - CHW, LTHW, MTHW FILTERS

There are several technologies available for sidestream filtration, however cartridge filtration remains one of the most efficient filtration methods for removal of rust, sediment and contaminants from CHW, LTHW and MTHW circuits.

An analysis of particle size distribution of water in HVAC closed loops would generally indicate majority of particles under 50 micron and many in the range of 10 – 25 micron. These particles also have the most fouling potential and can adhere to pipe surfaces, restrict efficient heat transfer and limit the performance of chemical treatment thereby aiding further corrosion in the system. Our cartridge filtration products provide outstanding performance in this particle size range and acuraPromelt filter cartridges remove more than 99% of particles at the rated pore size. For very dirty systems our BFOS bag filter housings and acuraBag filter bags can protect cartridge filters. These bag housings can be supplied with magnet assemblies which are particularly useful in severely corroded older system with a high concentration of rust particles.

We design our filtration systems to filter complete system volume 2 – 3 times in a twenty four hour period. Sidestream filters work by continuously filtering a small volume of total flow, anywhere between 5 – 15%. Since the rate of contaminant accumulation is less than rate of removal by filtration, this provides a cost effective filtration solution. Another benefit of sidestream filtration is that the filters can be taken offline without any disruption.

BFOS bag filter housings take 7″ diameter x 16″ or 32″ long filter bags. These can be used for prefiltration before the cartridge filters in dirty systems and can be supplied with industrial magnetic assemblies for simultaneous rust removal. Find out more about BFOS bag filter housings here or scroll down to view the complete sidestream filtration range. All filter housings can be supplied with optional DP gauge to indicate blocked cartridges and a reed switch to send external signal.

acuraBag filter bags provide excellent prefiltration and are available in Polypropylene for CHW loops and Polyester for hot water loops. Find out more about acuraBag filter bags here or scroll down to see complete sidestream filtration range.

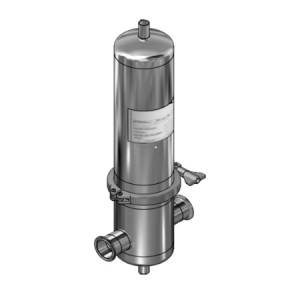

FWK sidestream filter housings feature a strong industrial bolted closure, stainless steel construction and multi cartridge configuration to suit all types of flow rates. Find out more about FWK sidestream cartridge filters here or scroll down to see the complete sidestream filtration range. All filter housings can be supplied with optional DP gauge to indicate blocked cartridges and a reed switch to send external signal.

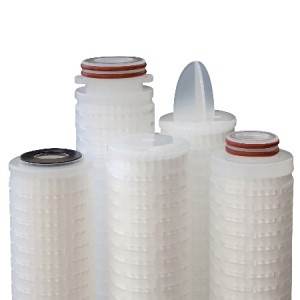

acuraPromelt high efficiency cartridge filters are used for removal of rust and sediment and reduction of microbial films in chilled water circuits.
