Water, chemical and oil Storage Tanks
from up to 90,000 litres in one piece GRP tanks, suitable for
storing many liquids including potable water and hot water up to 100
deg C and can be supplied with or without Insulation of varying
thickness, We have a large standard range of sizes in our tanks and
can make customer specific sized tanks when requested.
Our tanks come complete with a bolted lid and are free standing and
require no other support apart from being installed on a flat fully
supporting base.
We Also manufacture open top free standing tanks up to 3000mm long
and wide. |
|

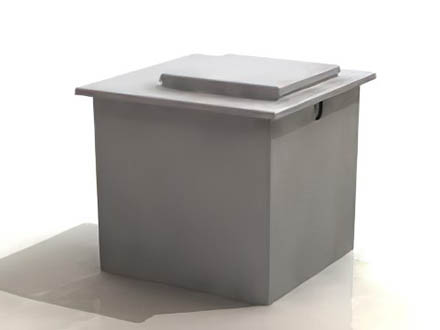

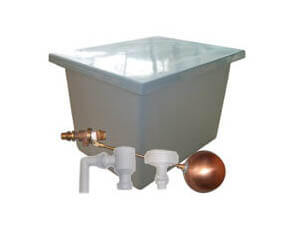

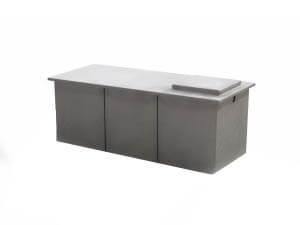

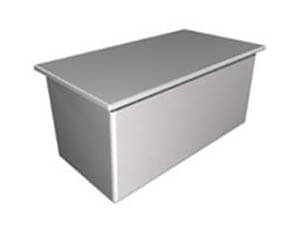

GRP One Piece
Storage Tanks |
|
For most applications and for tanks
situated outside with no access restrictions Our One Piece GRP
Storage tanks are the ideal solution. These tanks have no internal
supports or joints and a smooth internal gelcoat surface these are
some of our most economical tanks. The tanks can be
manufactured plain or with insulation, the internal surface resists
bacterial growth and all steel supports and externally fixed to the
tank walls and encapsulated within layers of fibreglass where
required. |
 |
|
One piece tanks can be
manufactured using one of three different resins:
-
Standard Tanks (Water up to 35 C,
Very mild chemicals)-
F & E Tanks (Water up to 70 C, Mild
chemicals)-
Chemical Tanks (Water up to 100 C,
chemicals)-
Key Benefits-
No Internal Supports or Joints-
Smooth internal bacteria resistant
surface-
Lids can be Apexed to cope with
Rain/Snow loads if required-
Insulated tanks available with HCFC
Free Foam-
Economical costs compared to
Sectional Tanks-
Manufactured to BS EN 13280: 2001
|
|

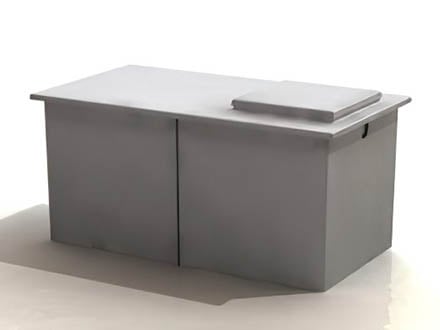

GRP Two Piece
Storage Tanks |
|
These Tanks with no internal supports,
Designed for projects where access may have some restriction (e.g.
Standard doorways), these tanks can be separated into two halves
along their height for access through the doors and corridors, then
can be easily erected once in position. These tanks are an excellent
alternative to Sectional panel tanks saving in some cases up to 50%.
|
 |
|
Two Piece Tanks have been designed to
provide a cost effective solution for tanks that need to go through
a restricted access but also costs less than a Sectional tank, These
tanks are split along their height allowing them to come apart and
be taken through doorways and corridors and similar pathways, These
tanks have a smooth internal gelcoat surface and no internal
supports.
Key Benefits:
-
No internal supports-
Smooth internal bacterial resistant
surface-
Lids can be Apexed to cope with
Rain/Snow loads if required-
Insulated tanks available with HCFC
Free Foam-
Cost effective solution to
Sectional tanks-
Manufactured to BS EN 13280: 2001
|
|

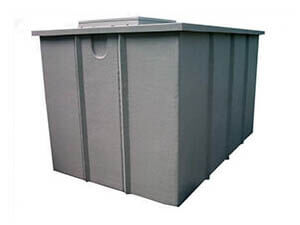

GRP Sectional
Storage Tanks |
|
When an area to be used for sitting a
tank has restricted access (e.g. doorway or hatch) and therefore a
one piece tank could not get access, the only solution left is a
tank made from panels and sealed, bolted and assembled in the area
once through the restricted access, this allows for a tank with a
larger storage capacity to be used in the same area and can be far
greater than the access into the area will allow. |
 |
|
Made from GRP tank panels usually
1000*1000mm the panels can be easily moved into position and
assembled into a tank by our team of specialists within the area
with only 500mm space around the tank.
Sectional Tanks are available plain or with insulation, and are
constructed from a number of GRP panels that are bolted and sealed
together on site, these tanks can be completely internally flanged
only requiring as little as 50mm around the tank to assemble, also
tanks that are externally flanged with either internal or external
flanged base, all sectionals come complete with sectional lid and
Inspection hatch, Sectional tanks with internal bases require a flat
fully supporting base where as an externally flanged based sectional
can be assembled on pillars or RSJ’s that are all the same level and
flat but must be a minimum of 500mm off the floor. |
|
Key Benefits:
-
Ideal For tanks that are to be
situated through a restricted access-
Insulated tanks available with HCFC
Free Foam-
1000 *1000mm Panels available as
standard, Specific panel sizes available on request-
Tanks up to 3m in Height with no
restriction on Length and Width-
Manufactured to BS EN 13280: 2001
|
|
Tank Accessories |
|
Many accessories are available from

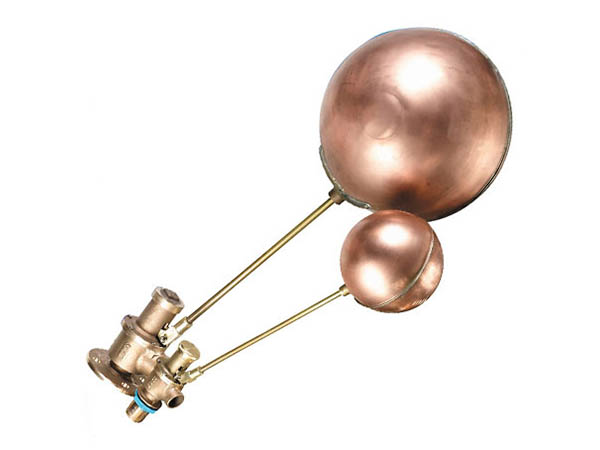

ourselves including Equilibrium Ball Valves, Aylesbury float valves,
Screened Overflows and screened vents, BSP Connections, Laminated
Stub Flanges, Ball Valve Housings, Screened Spill over Weirs (Type
AB Airgap), Lockable Hatches, Kiosks and Housings, Drip Trays and
Epoxy Resin Liner. |
 |
|
We can supply a various range of
accessories which is listed below, for more details on any of the
accessories please contact us.
Range of Accessories:
-
Aylesbury Float Valves-
Ball Valves-

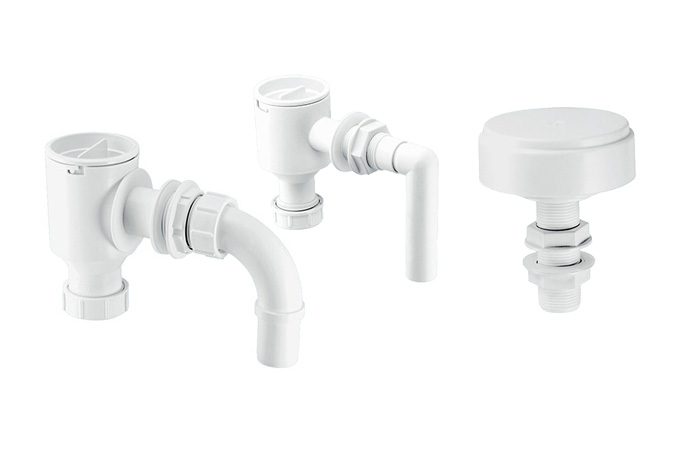

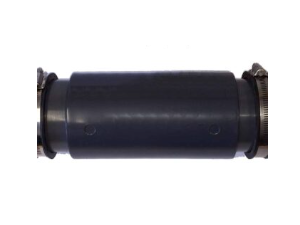

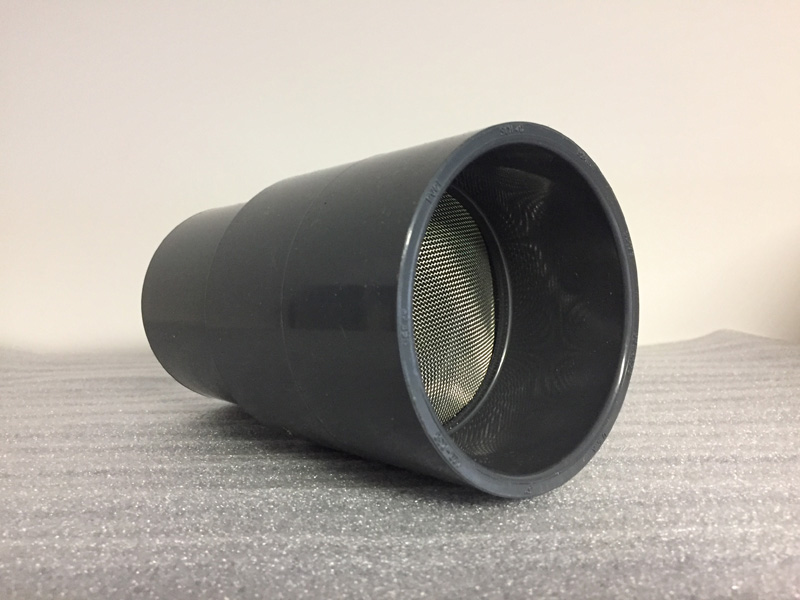

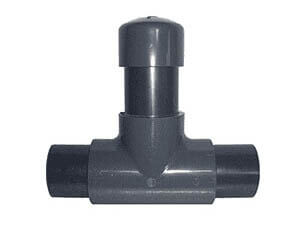

Screened Overflows Kits & Vents-
Access hatches
(Raised/Hinged/Locked)-
GRP Ball Valve Housings-

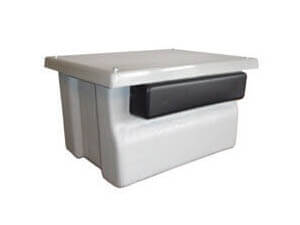

Screened Spill over Wiers-
Type AB Airgaps (CAT 5 Backflow
prevention)-
GRP Split / Flat Lids-
GRP Drip Trays-
UPVC Tank Connectors-
Brass BSP Essex Connectors-
NP16 Stub Flanges
|
|
