NGK
Berylco (UK) Ltd - Beryllium Copper Strip, Bar, Rod,
Wire, Plate |
|
 NGK Berylco (UK) Ltd are stockists of Beryllium
Copper alloys. Since the company was established in 1986 we have become market
leaders in the UK but have also established a reputation to supply customers
worldwide when delivery and service are of prime importance. We hold in stock a

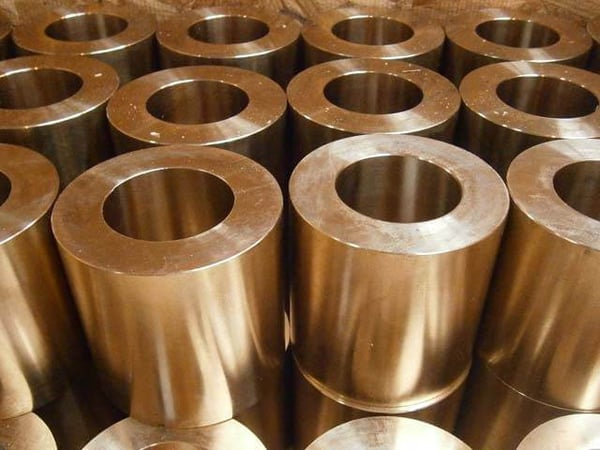

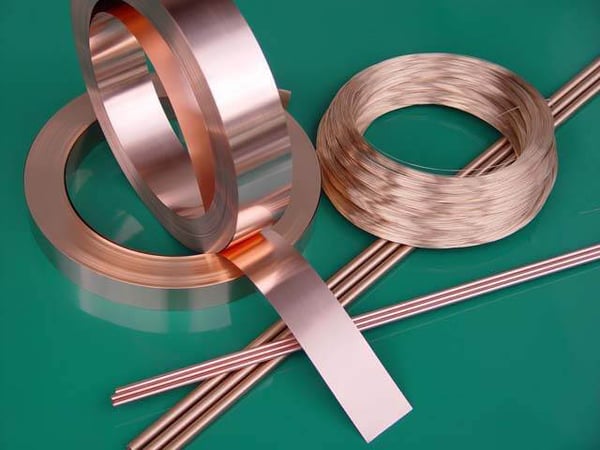

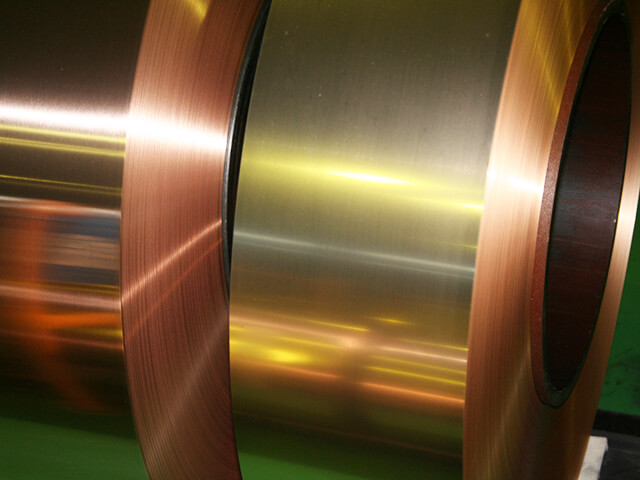

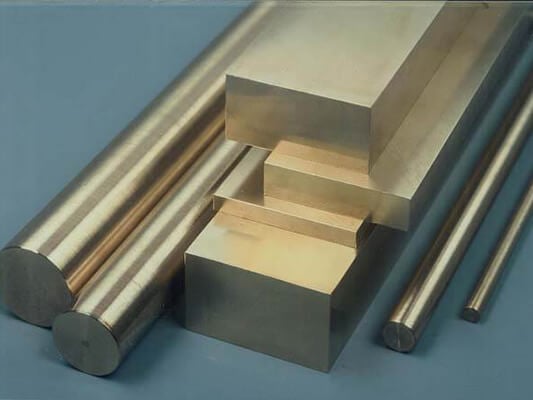

range of Beryllium containing alloys. The main products forms being; strip, rod,

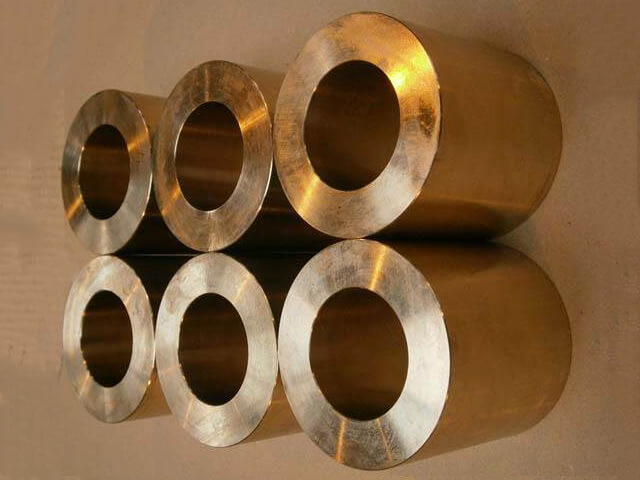

bar, wire, hollows, master alloy. Amongst other products available on short lead
time are Beryllium Copper safety tools and Beryllium Copper chill vents.

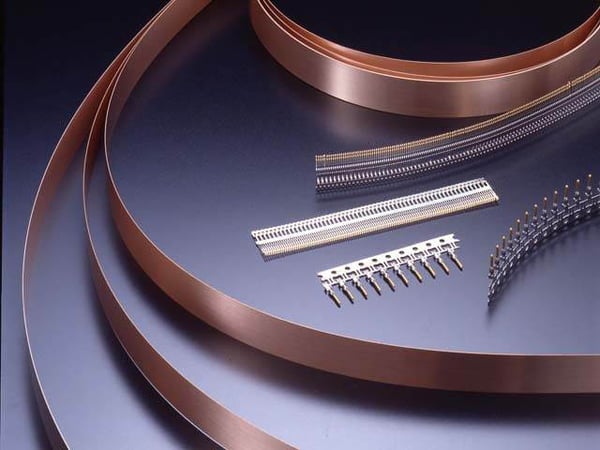

Berylco Alloys are preferred in critical applications ranging from miniature
electronic connectors to aircraft bushings to oil field drill tool products.
Applications can also be found in plastic and die cast mould tooling and non
sparking hand tools.
Berylco Products are engineered to;
-
Offer the best combination of strength, ductility and conductivity-
Sustain performance at higher temperatures-
Excel in platability and solderability-
Reduce wear-
Increase part life cycling-
Meet severe fabrication operations to the most exacting specifications-
Meet higher performance standards demanded by today’s technologies
|
|
Characteristics of Berylco Alloys |
|
High Strength, Good Conductivity Alloys
Berylco 25 alloy UNS C17200, can attain mechanical properties up to 200ksi and a
hardness of RC 44
Berylco 33/25, UNS C17300 is a free machining version with the same
characteristics as Berylco 25
 High Conductivity, Good Strength Alloys
Berylco 10 and 14 alloys UNS C17500 and C17510 can obtain conductivity over 45%
IACS and strengths up to 140ksi UTS. This combination of properties makes these
alloys ideally suited for heat dissipating modules, resistance welding
components and other electrical applications.
High Strength and Elastic Modulus
Beryllium Copper Alloys can attain high strengths through precipitation
hardening.
The strength of these alloys allow for the design of smaller, lighter components
that can endure high bending stresses when used as a spring material.

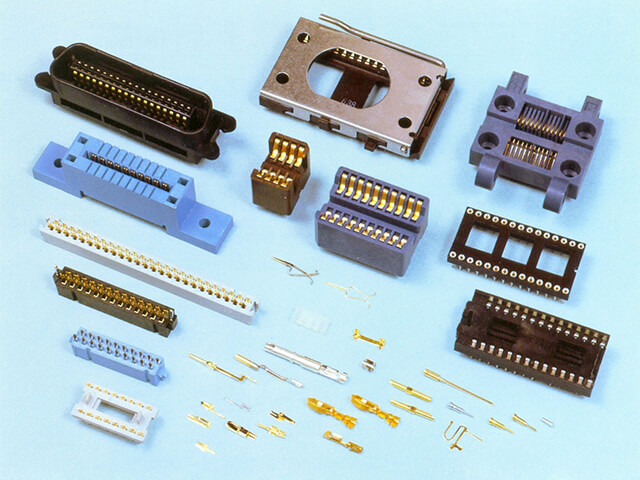

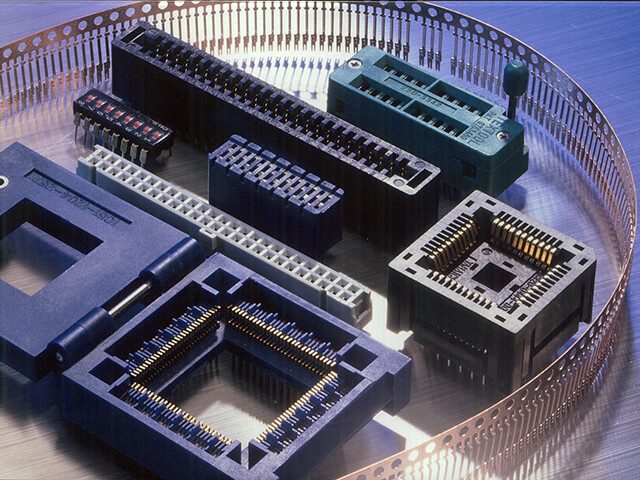

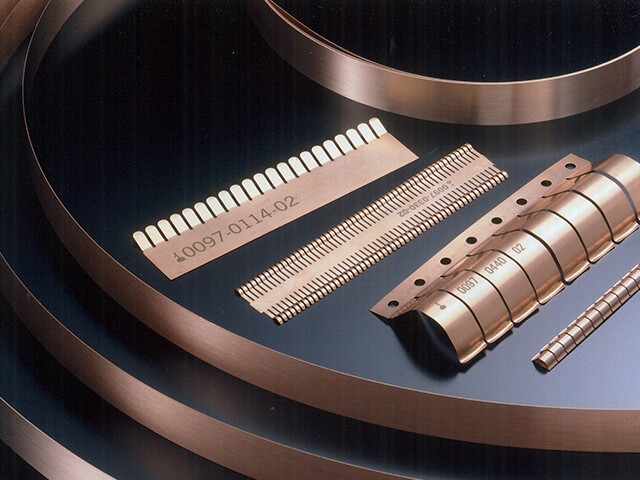

Typical applications include: springs, electrical switches, diaphragms, bellows,
clips washers and connectors.
High Fatigue Strength
Beryllium Copper exhibits excellent resistance to fatigue strength under reverse
bending (up to 45 ksi) which qualifies its use in applications where other
alloys fail to provide the same level of reliability.
Applications are varied & include: springs, electrical switches contacts,
relays, connectors & washers. |
|
Elevated Temperature Properties and Resistance to Stress Relaxation |
|
 Beryllium Copper is a precipitating hardening alloy with excellent properties at
elevated temperatures and can be used in a wide range of temperatures with
little loss of mechanical properties
Good Formability
Beryllium Copper alloys can be formed into complicated shapes in an annealed or
cold worked temper.
The highest mechanical properties, commonly known as peak properties, can be
obtained with proper heat treatment after forming.
High Electrical Conductivity
The electrical conductivity of beryllium copper ranges from 16 to 65% IACS.
Beryllium copper is the material of choice for high current density springs
requiring low heat generation, due to the alloy’s combination of high electrical
conductivity, thermal conductivity and strength.
Corrosion Resistance
Beryllium copper has good corrosion resistance nearly equal to nickel silver.
Not susceptible to hydrogen embitterment.
Applications can be found in marine and chemical industries
Reliability
There is no need to trade off one property to satisfy another.
Beryllium copper allows engineers to employ a unique design approach when other
materials will not perform.
This is an important aspect for designers looking to miniaturise, yet not
compromise, their component integrity. |
|
Spring Properties and Miniaturisation |
|
Beryllium copper alloys have high mechanical strength and favourable elastic
modulas which makes them highly suitable as a spring material
Machinability

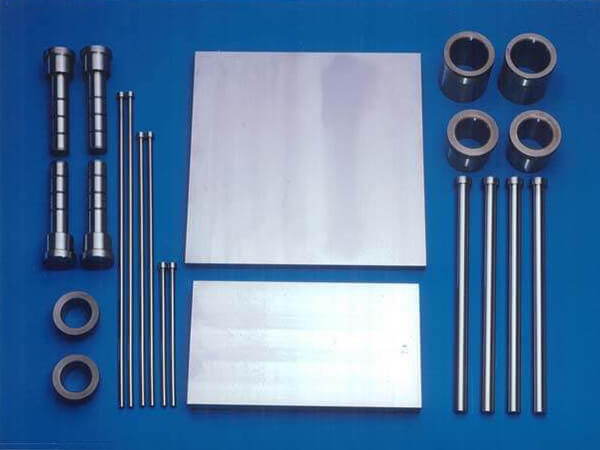

Beryllium copper can be machined into intricate shapes.
Its machinability in the age hardened condition is comparable to many other
copper base alloys and better than stainless steels.
Its dimensional stability is far superior to any other copper base alloy.
Abrasive Resistance
Beryllium copper offers attractive wear resistant properties compared to other
copper base alloys and many ferrous alloys because of its complex oxide transfer
wear films.
Typical applications are shell moulding, plastic moulds, injection moulding
nozzles and cores, bearings and valves.
Non- Magnetic
Extremely useful for housing sensitive detectors affected by magnetic fields.
Non- Sparking
Beryllium copper is non-sparking and NGK Berylco produces safety tools for use
in environments where flammable solvents, fuels, material, gases and residues
are present, causing potential risk of sparks resulting in a fire or an
explosion. While many non-ferrous alloys meet non sparking standards, only
beryllium copper has the superior strength and hardness not found in safety
tools made from aluminium, bronze, and brass. Berylco safety tools provide
maximum torque and shear strength plus exceptional wear resistance. Typical uses
are in mining, gas and petrochemical industries. |
|
