Elite Precast Concrete Ltd - Concrete Drainage Systems
Elite Precast Concrete drainage products offer low maintenance and high-performance solutions for use within foul, storm, surface water and sustainable drainage solutions (SuDS), they include seating rings, adjusting units, corbel slabs, gully cover slabs, cover slabs, bespoke cover slabs, special access cover slabs and house inspection chambers (HICs).

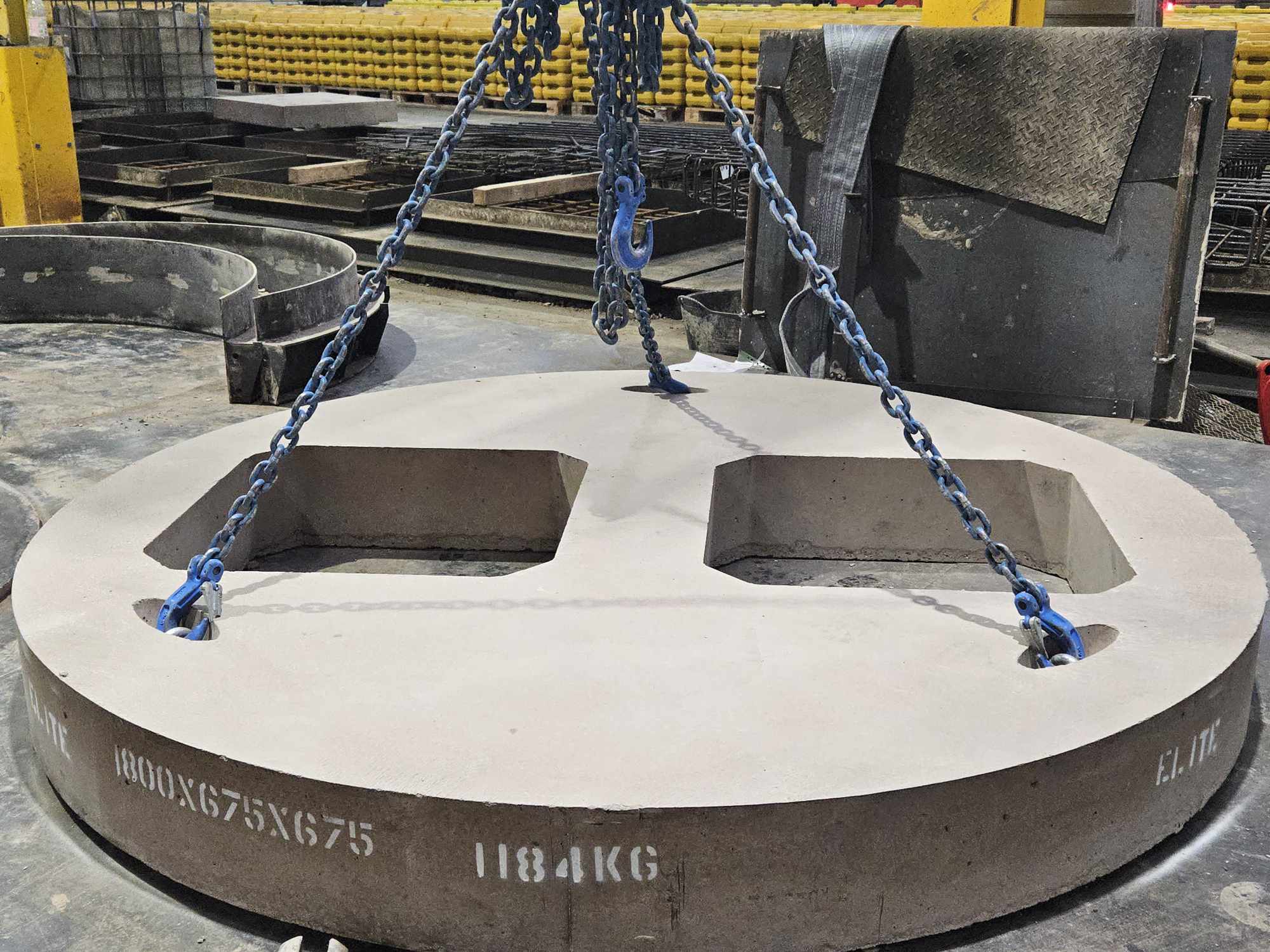

Concrete Manhole Cover Slabs |
Precast Concrete Manhole Cover Slabs are all manufactured in house and
in stock! We make all of these products to BS 5911-3 Standards and are
available with the following access sizes;
900MM Diameter
600MM x 600MM Access
1050MM Diameter
600MM x 600MM Access
675MM x 675MM Access
1200MM Diameter
600MM x 600MM Access
675MM x 675MM Access
750MM x 600MM Access
750MM x 750MM Access
Larger cover slabs include 2100, 2400, 2700 and 3000mm diameter are made
to order, this allow us to make them with the access size that you
desire. Please contact [email protected] with your requirements.
Concrete Seating Rings |
Designed to site on the top of the manhole cover and made to BS EN
1917:2002 and BS 5911-3:2010, Elite Precast Concrete seating
rings/adjusting units are reinforced 65mm deep units, which can be used
in place of engineering bricks to adjust and secure the ductile or
cast-iron covers and frames to the required level.
One-part Seating RIngs | Two-part Seating Rings |
600mm x 600mm
access 675mm x 675mm access 750mm x 600mm access 750mm x 750mm access 600mm x 600mm eccentric |
600mm x 600mm access 675mm x 675mm access 900mm x 900mm access 1200mm x 675mm access |
Gully Covers & Raisers |
Manufacture in accordance with BS 5911 – 6, Gully cover slabs or Gully
Risers are available in both square and ‘U’ shaped options, to give
greater customer choice, for positioning next to kerb edges, with
handling recesses for lifting brackets, to service the needs of those
on-site.
Square
750MM x 650MM
U-Shape
585MM x 650MM
The Thickness of either can vary however stock items include 100MM or
65MM Thick. If you require something more bespoke please contact us.
House Inspection Chambers |
Elite precast concrete House Inspection Chambers (HICs) are manufactured
to BS EN 1917 and BS 5911 and comply with the recommendations within the
Sewers for Adoption manual.
Made with a tongue and groove joint, the rectangular manholes can be
sealed with either a sand and cement mortar or bitumen sealant and can
be supplied complete with heavy duty cover slab.
HICs are an economical and versatile solution that meet the demands of
any domestic drainage installation and provides access to the drainage
system so that they can be cleaned, cleared or inspected.
Concrete Spillway |
Our Dam Spillway Blocks are Wedge Shaped Precast Concrete. They are
shaped in this particular way to ensure that the flow of the water
achieves maximum stability in the highest velocity of opened channel
conditions.
Each set of Spillway blocks are unique depending upon the clients
specifications. We can accommodate any shape, size of diameter. Please
send technical data for an accurate quote.
Concrete Channels, Ducts and Precast Concrete Troughs |
The Precast Concrete Channels, Ducts and Troughs we offer are mainly
used to house electric cables, pipes, steam, water, slurry and sewage.
We can offer a variety of sizes and specifications when it comes to
rectangular and trapezoidal (AKA Ditch Liners) ducts.
If required you can visit the Technical Drawings section of our website
and down load the CAD Drawings and Weights of each channel;
Lids are also available for the below Rectangular Channels;
